art Number 465044-5261S
Previous Version 465044-0037, 465044-0047, 465044-0061, 465044-0261, 465044-0262, 465044-0062, 465044-0161, 465044-5047S, 465044-5037S
OE number 6137828600, 6137828200, 6137-82-8600, 6137-828-200, 6137-828-200
Description Earth Moving, Wheel Loader, Off Highway, Marine
CHRA 447450-0088 (447450-5088S, 408105-0204, 447450-0002, 447450-0036) $300.00 NEW IN STOCK, MADE IN USA
Turbo Model T04B59
Fuel Diesel
Fitted To Model LW200, PC200-3, PC220-1/2, WA250/300-1
Engine S6D105B, S6D105, S6D105-1, S6AD105, S6D105B1-A
Application GD500, LW200, WA250
Displacement 6.49L, 6500 ccm, 6 Cylinders
KW 125/168
Fuel Diesel
S/N 61481-UP, 62361-UP, 65001-UP
Angle α (compressor housing) 15º
Angle β (turbine housing)
Bearing Housing 430027-0058 (407285-0027, 430027-0048)(ME044066, 318137)(Oil Cooled)(1900011057) $99.00 NEW IN STOCK
Turbine Wheel 451309-0003 (407276-0006, 407276-0019, 410188-0006, 410188-0037, 446905-0002, 446905-0005, 446905-0007, 446905-0010) )(Ind. 63.75 mm, Exd. 73. mm, Trm 76, 11 Blades)(1100040436, 1100016090) $189.00 NEW IN STOCK
Comp. Wheel 409179-0029 (318134) (Ind. 45.85 mm, Exd. 70. mm, Trm 43, 8+8 Blades, Superback)(1100040401, 1200020073) $137.08 NEW IN STOCK
Back plate 408045-0035 (1100040300) $19.23 NEW IN STOCK
Heat shield Number 409299-0001 (409299-0000) (311943, 7N0012, 3524773B)(2030016015) $19.50 NEW IN STOCK
Repair Kit 468100-0000 (1100040750, 1100040767, 5000010041) $69.60 NEW IN STOCK
Turbine Housing 410401-0036 (318161) NEW IN STOCK
Compressor Cover 408274-0034 (318135) NEW IN STOCK
Turbine Housing AR 1.00
Gasket Kit 215079 (2090505104)
Gasket (turbine inlet) 407294-0001 (312617, 303031063, 6131115170) $8.20
Gasket (oil outlet) 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32
Gasket (oil inlet) 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) $4.48
NOTE Complete replacement turbo only. Internal parts not interchangeable. Also replaces 465044-0037.
Manufacturer Honeywell-Garrett



Applications

Komatsu Marine With S6D105

Komatsu PC200 Power shovel With S6D105B

Komatsu WA300, WA250 Offway, WA300-1 With S6D105

Komatsu PC220-3 Offway With S6D105B1-A

Komatsu PC220 Power shovel With S6D105B, S6D105

Komatsu Generator With S6D10

Komatsu PC200-3 Offway With S6D105

Komatsu LW200, GD500, GD505R Offway With S6D105-1

Komatsu Wheel Loader With S6D105

Komatsu LW200 Crane With S6D105

Komatsu EC170ZS With S6AD105

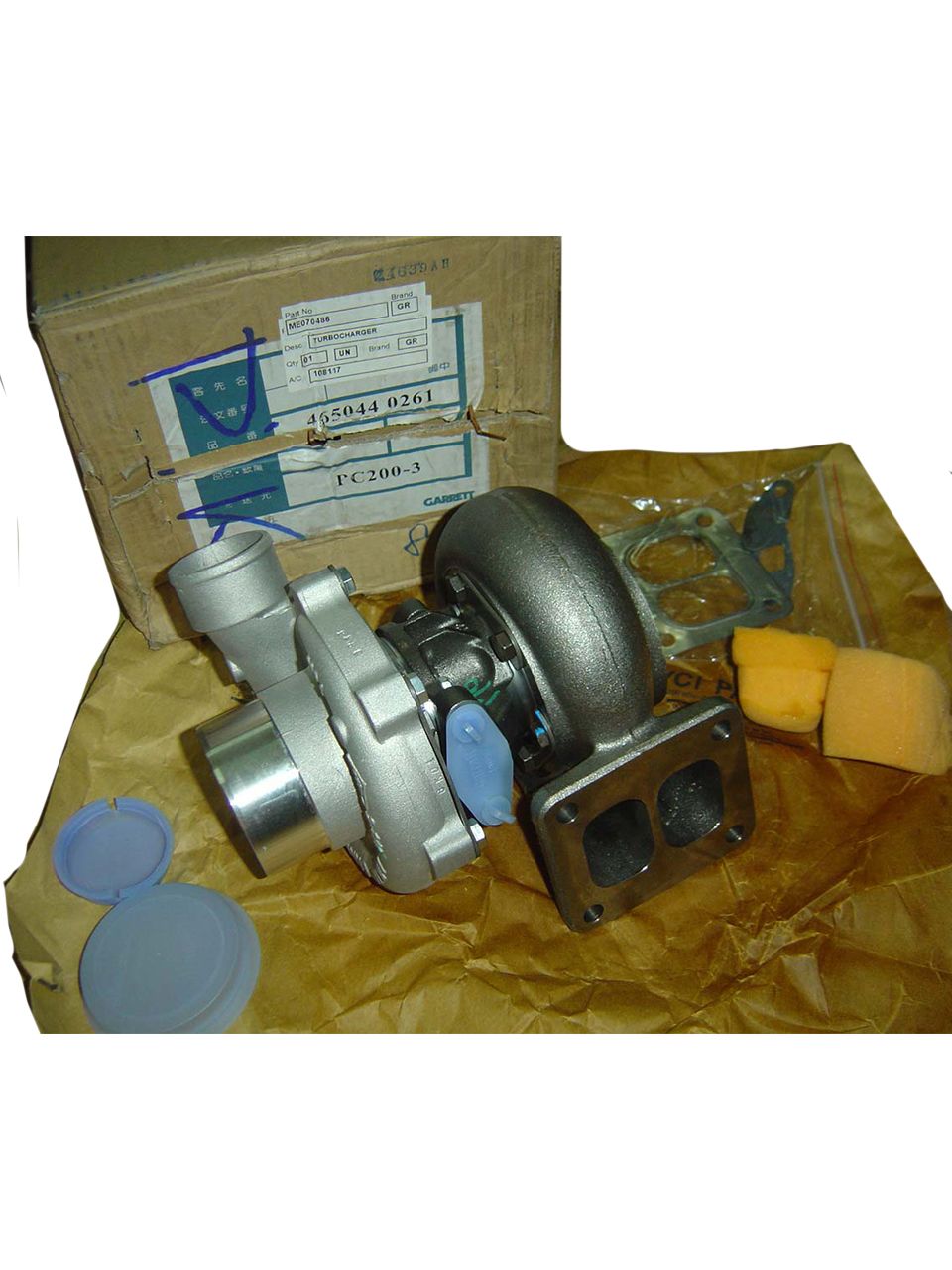

GARRETT 4650440261 - ME070486 (6137-82-8200) Турбонагнетатель в сборе


Цена: 36125 руб.

Срок поставки: В наличии

GARRETT 4650440261 - ME070486 (6137-82-8200) Турбонагнетатель в сборе

Рейтинг детали

По данной детали еще не оставляли отзывов

art Number 465044-5261S
Previous Version 465044-0037, 465044-0047, 465044-0061, 465044-0261, 465044-0262, 465044-0062, 465044-0161, 465044-5047S, 465044-5037S
OE number 6137828600, 6137828200, 6137-82-8600, 6137-828-200, 6137-828-200
Description Earth Moving, Wheel Loader, Off Highway, Marine
CHRA 447450-0088 (447450-5088S, 408105-0204, 447450-0002, 447450-0036) $300.00 NEW IN STOCK, MADE IN USA
Turbo Model T04B59
Fuel Diesel
Fitted To Model LW200, PC200-3, PC220-1/2, WA250/300-1
Engine S6D105B, S6D105, S6D105-1, S6AD105, S6D105B1-A
Application GD500, LW200, WA250
Displacement 6.49L, 6500 ccm, 6 Cylinders
KW 125/168
Fuel Diesel
S/N 61481-UP, 62361-UP, 65001-UP
Angle α (compressor housing) 15º
Angle β (turbine housing)
Bearing Housing 430027-0058 (407285-0027, 430027-0048)(ME044066, 318137)(Oil Cooled)(1900011057) $99.00 NEW IN STOCK
Turbine Wheel 451309-0003 (407276-0006, 407276-0019, 410188-0006, 410188-0037, 446905-0002, 446905-0005, 446905-0007, 446905-0010) )(Ind. 63.75 mm, Exd. 73. mm, Trm 76, 11 Blades)(1100040436, 1100016090) $189.00 NEW IN STOCK
Comp. Wheel 409179-0029 (318134) (Ind. 45.85 mm, Exd. 70. mm, Trm 43, 8+8 Blades, Superback)(1100040401, 1200020073) $137.08 NEW IN STOCK
Back plate 408045-0035 (1100040300) $19.23 NEW IN STOCK
Heat shield Number 409299-0001 (409299-0000) (311943, 7N0012, 3524773B)(2030016015) $19.50 NEW IN STOCK
Repair Kit 468100-0000 (1100040750, 1100040767, 5000010041) $69.60 NEW IN STOCK
Turbine Housing 410401-0036 (318161) NEW IN STOCK
Compressor Cover 408274-0034 (318135) NEW IN STOCK
Turbine Housing AR 1.00
Gasket Kit 215079 (2090505104)
Gasket (turbine inlet) 407294-0001 (312617, 303031063, 6131115170) $8.20
Gasket (oil outlet) 210021 (148062, 311496, 3519807, 413671-0000, 409037-0000)(1900000027) $3.32
Gasket (oil inlet) 210023 (210023-0000, 147837, 215234, 55739, 3709737, 3500681, 3519762, 409266-0001, 409036-0000, 409026-0001, 52231586500)(1900000037) $4.48
NOTE Complete replacement turbo only. Internal parts not interchangeable. Also replaces 465044-0037.
Manufacturer Honeywell-Garrett



Applications

Komatsu Marine With S6D105

Komatsu PC200 Power shovel With S6D105B

Komatsu WA300, WA250 Offway, WA300-1 With S6D105

Komatsu PC220-3 Offway With S6D105B1-A

Komatsu PC220 Power shovel With S6D105B, S6D105

Komatsu Generator With S6D10

Komatsu PC200-3 Offway With S6D105

Komatsu LW200, GD500, GD505R Offway With S6D105-1

Komatsu Wheel Loader With S6D105

Komatsu LW200 Crane With S6D105

Komatsu EC170ZS With S6AD105



Модели машин: CATERPILLAR EL240Z (engine 6D15-T), KOMATSU GD500, LW200, PC200-3, PC220-1/2, WA250/300-1, Engine S6D105B, S6D105, S6D105-1, S6AD105, S6D105B1
Вес: 7.8
Объем: 0.0149
Штук в коробке: 1
Применяемость: KOMATSU GD505A-2 EG125-2 WA300-1 PC220-3 PC200LC PC220-2 LW200L-1 WA320-1 WA250-1 Подходит для двигателя: S6D105-B-1, S6D105-1Z, S6D105-1X

Информация о данной детали отсутствует

Информация о данной детали отсутствует
